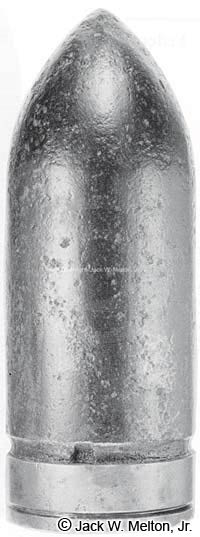

Charles W. Stafford of
New York, patented this projectile on December 20, 1864, patent #45,567. The brass
disk sabot has three corresponding flanges that fit into three grooves on the tapered iron
base of the projectile. The brass disk is affixed to the base of the projectile with
a six-sided bolt. There are no known battlefield recoveries of this
variety.
