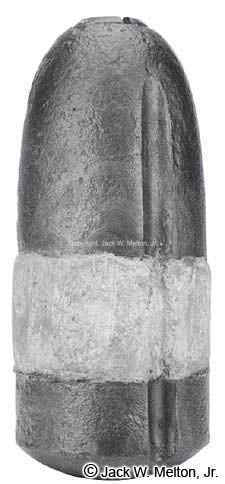

The case-shot variety
has a more rounded nose than the shell version in this pattern. The Hotchkiss patent
date is cast into the base cup. Note the flame grooves needed to help communicate
the propellant flame to the paper time fuze. This specimen was recovered from the
battlefield of Kennesaw Mountain, Georgia. Click here
for a cross-sectional view of the interior construction.
