Home›Heavy Artillery Projectiles›CS Brooke 7 in. Shell (p. 86)

Confederate · Brooke, Sub-pattern III

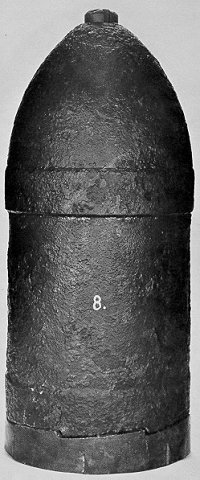

CS Brooke 7 in. Shell (p. 86)

This type of fuze was primarily naval. Recovered from Spanish Fort, Alabama.

Diameter: 6.9 inches
Gun: 7-inch Brooke rifle
Length: 16 inches
Weight: About 97 pounds
Construction: Bolt
Sabot: Copper, Brooke Ratchet Disc
Fuzing: Reverse Bourbon-James Percussion

CS Brooke 7 in. Shell (p. 86) — © Jack W. Melton Jr.
