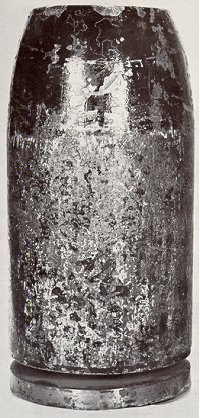

CS Tennessee Sabot 7 in Bolt (p. 139)

Tennessee Sabot, Sub-pattern II

A flat nosed armor punching bolt with the projectile body machined to bore size.

Diameter: 6.9 inches
Gun: 7-inch Brooke Rifle
Length: About 14 1/2 inches
Weight: About 133 pounds
Construction: Bolt
Sabot: Copper, Reverse Tennessee Sabot
Fuzing: None

CS Tennessee Sabot 7 in Bolt (p. 139) — © Jack W. Melton Jr.
