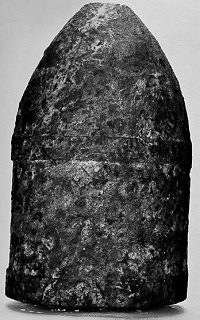

CS Tennessee Sabot Rifled 24 pdr (p. 131)

Tennessee Sabot, Sub-pattern II

Projectile in this caliber on the Tennessee Sabot system are not common.

Diameter: 5.7 inches
Gun: Rifled 24-pounder Smoothbore. 5.82-inch Caliber
Length: About 9 1/2 inches
Weight: About 38 pounds
Construction: Common Shell
Sabot: Copper, Reverse Tennessee Sabot - Missing
Fuzing: Wooden Fuze Plug

CS Tennessee Sabot Rifled 24 pdr (p. 131) — © Jack W. Melton Jr.
